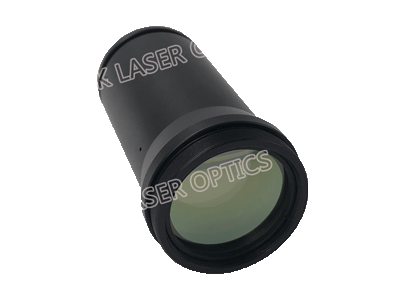

扩束镜广泛应用于工业激光打标、雕刻和切割系统中，对激光光束质量的要求非常严格。

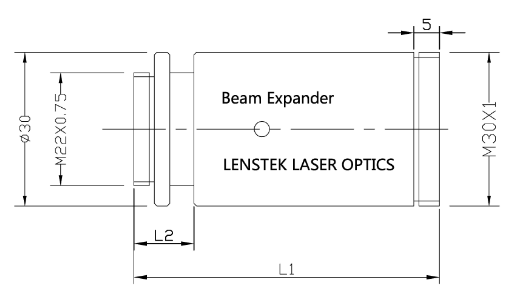

| P/N | WL | MAG | IN D mm |
OUT D mm |
L1 mm |
L2 mm |
D mm |
Thread IN |
Thread OUT |
| BX-1064-1.4X | 1064 | 1.4X | 20 | 28 | 100 | -- | -- | M40X1 | -- |
| BX-1064-2X | 1064 | 2X | 8 | 18 | 60.53 | 12.59 | 30 | M22X0.75 | M30X1 |
| BX-1064-3X | 1064 | 3X | 8 | 18 | 61.27 | 13.34 | 30 | M22X0.75 | M30X1 |
| BX-1064-4X | 1064 | 4X | 8 | 18 | 60.87 | 12.94 | 30 | M22X0.75 | M30X1 |
| BX-1064-5X | 1064 | 5X | 8 | 18 | 60.39 | 12.45 | 30 | M22X0.75 | M30X1 |
| BX-1064-6X | 1064 | 6X | 8 | 18 | 60.70 | 12.76 | 30 | M22X0.75 | M30X1 |
| BX-1064-8X | 1064 | 8X | 8 | 18 | 61.16 | 13.23 | 30 | M22X0.75 | M30X1 |
| BX-1064-8Xb | 1064 | 8X | 10 | 100 | 180 | -- | -- | M30X1 | -- |
| BX-1064-10X | 1064 | 10X | 8 | 18 | 61.48 | 13.54 | M22X0.75 | M30X1 | |
| BX-1064-10Xb | 1064 | 10X | 8 | 120 | 290 | -- | -- | M30X1 | -- |
| BX-1064-15X | 1064 | 15X | 8 | 18 | 99.10 | -- | 30 | M22X0.75 | -- |
| BX-1064-20X | 1064 | 20X | 8 | 30 | 102.19 | -- | 45 | M30X1 | M43X0.75 |
| BX-1064-30X | 1064 | 30X | 8 | 32 | 149.81 | -- | 45 | M22X0.75 | M43X0.75 |
| BX-1064-40X | 1064 | 40X | 8 | 100 | 232.6 | -- | 112 | M22X0.75 | -- |
| BX-1064-60X | 1064 | 60X | 6 | 100 | 270 | -- | -- | M22X0.75 | -- |
