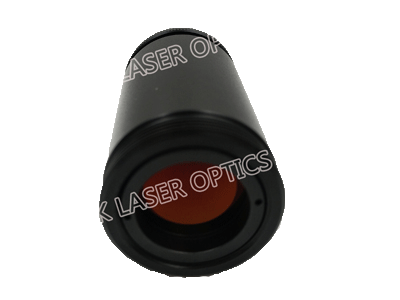

扩束镜532nm绿光激光器广泛应用于工业激光打标、雕刻和切割系统中，全部采用进口熔石英材料，高抗激光损伤阈值。
| P/N | WL | MAG | IN D mm |
OUT D mm |
L1 mm |
L2 mm |
D mm |
Thread IN |
Thread OUT |
| BX-532-2X | 532 | 2X | 8 | 18 | 59.26 | 11.33 | 30 | M22X0.75 | M30X1 |
| BX-532-3X | 532 | 3X | 8 | 18 | 60.02 | 12.09 | 30 | M22X0.75 | M30X1 |
| BX-532-4X | 532 | 4X | 8 | 18 | 59.66 | 11.72 | 30 | M22X0.75 | M30X1 |
| BX-532-5X | 532 | 5X | 8 | 18 | 59.17 | 11.23 | 30 | M22X0.75 | M30X1 |
| BX-532-6X | 532 | 6X | 8 | 18 | 59.52 | 11.59 | 30 | M22X0.75 | M30X1 |
| BX-532-8X | 532 | 8X | 6 | 18 | 60.10 | 12.17 | 30 | M22X0.75 | M30X1 |
| BX-532-10X | 532 | 10X | 6 | 18 | 60.24 | 12.30 | 30 | M22X0.75 | M30X1 |
| BX-532-15X | 532 | 15X | 8 | 18 | 99.10 | -- | 30 | M22X0.75 | -- |
| BX-532-20X | 532 | 20X | 8 | 30 | 102.19 | -- | 45 | M30X1 | M43X0.75 |
| BX-532-30X | 532 | 30X | 8 | 32 | 149.81 | -- | 45 | M22X0.75 | M43X0.75 |
| BX-532-40X | 532 | 40X | 8 | 100 | 232.6 | -- | 112 | M22X0.75 | -- |
| BX-532-45X | 532 | 45X | 8 | 150 | 350 | -- | -- | M22X0.75 | -- |
