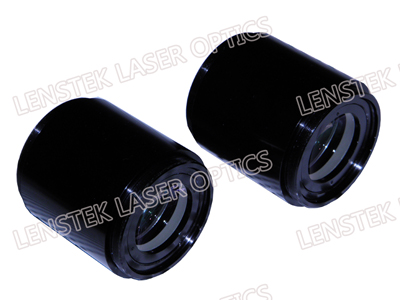

Confocal Laser Scanning Lenses

Applications:

  • Multi-Color Fluorescence Imaging
  • 3D Reconstruction
  • Dynamic 3D imaging
  • 3D Neuron imaging
  • Morphology
  • Nano-crystal
  • Multi-Color GFP Imaging
  • FRET or FLIM, FRAP
  •  Cellular Ion Concentration and Ratio Imaging
  • Time-Lapse Recording
  • Z-section and measurement
  • Genetic FISH imaging and quantification
  • Chromosome spectral analysis
  • Surface and roughness analysis
  • Micro-Hardness analysis
  • Wafer analysis
  • Thin layer analysis
P/N

WL

nm

EFL

mm

SCAN
FIELD

mm

DIST

COLOR DIS

um

WD

mm

CLS-FL-18 1250-1380 18 4.7X4.7 <0.9% 25(1250-1380nm) 7.5
 CLS-FL-18B 800-1100 18 4.7X4.7 <0.9%

5(810-890nm)

10(1000-1100nm)

7.5
CLS-FL-36 1250-1380 36 9.4X9.4 <0.2% 5(1250-1380nm) 25.1
CLS-FL-36B 800-1100 36 9.4X9.4 <0.2%

15(810-890nm)

10(1000-1100nm)

25
CLS-VIS-F40 400-750 39 10.3X10.3 <0.05% - 25.1
CLS-FL-40B 700-900 39 10.3X10.3 <0.05%



-
25.1
CLS-FL-40C 800-1100 39 10.3X10.3 <0.05% - 25.1
CLS-FL-50 450-1100 50 14.1X14.1 <0.2%

<80(450-1100nm)

<25(680-1100nm)

26.4
CLS-FL-50B 680-1300 50 14.1X14.1 <0.2%

<130(680-1300nm)

<25(680-1100nm)

26.4
CLS-FL-50C 800-1800 50 14.1X14.1 <0.2% <250(800-1800nm) 26.4
CLS-FL-54 1250-1380 54 14.1X14.1 <1.1%

50(1250-1380nm)

42.3
CLS-FL-54B 800-1100 54 14.1X14.1 <1.1%

30(810-890nm)

10(1000-1100nm)

42
CLS-FL-54C 750-950 54 18.8X18.8 <0.3%

210(750-950nm)

64
CLS-FL-54D 950-1150 54 18.8X18.8 <0.25% 50(950-1150nm) 64
CLS-FL-54E 1200-1400 54 18.8X18.8 <0.25% 200(1200-1400nm) 64
CLS-FL-60 400-1100 60 12X12 <0.05% <20(520-920nm) 46.9
CLS-FL-70 400-1700 70 18.2X18.2 <0.05%

<50(400-750nm)

<80(500-1100nm)

54
CLS-FL-110A 1250-1380 110 28.9X28.9 <0.4% 300(1250-1380nm) 93.8
CLS-FL-110B 800-1100 110 28.9X28.9 <0.4%

30(810-890nm)

150(1000-1100nm)

94

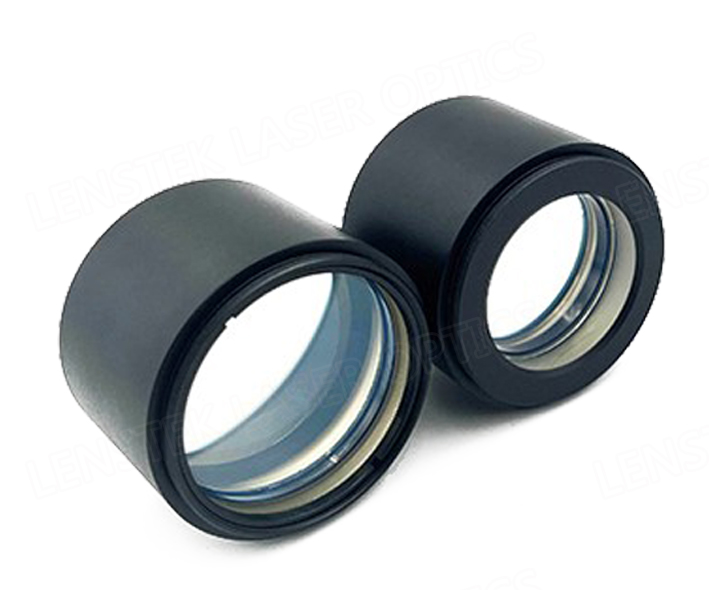

Supporting tube mirror TTL series

In response to customers' application requirements, we have launched the TTL series of telecentric tubescope for microscanning lens, and realized the telecentric system with confocal laser scanning lens.

This series of tubes uses a wide-band MgF2 coating to achieve high transmittance at 400-2000nm, with on-axis color difference and resolution reaching diffraction limits.

P/N

WL

nm

EFL

mm

EPD

mm

SCAN
FIELD

mm

WD

mm

TTL-100MC 450-750 100 20 22X22 63.1
TTL-165MC 400-750 165 20 22X22 120.6
TTL-180MC 400-750 180 20 22X22 133.5
TTL-200MC 400-2000 200 20 22X22 148.8
TTL-200MC-B 400-750 200 20 22X22 151.8
TTL-200MC-C 650-1050 200 20 22X22 151.8
TTL-200MC-D 400-2000 200 20 22X22 151.8
TTL-200MC-E 248-700 200 20 22X22 176.4
TTL-200MC-F - 200 20 22X22 148
TTL-200MC-G 400-2000 200 20 22X22 151.4
TTL-200MC-H 450-1100 200 20 22X22 180.9
TTL-200MC-I 680-1300 200 20 22X22 180.9
TTL-200MC-J 900-1900 200 20 22X22 180.9
TTL-270MC 400-1300 270 20 22X22 250
TTL-300MC 400-700 300 20 22X22 94.2
TTL-400MC 400-700 400 20 22X22 94.2
TTL-600MC 400-700 600 20 22X22 94.2



Dispersion compensator

 In response to customer application requirements, CLS-DC series of dispersion compensator is introduced to reduce the dispersion effect of light and improve the color fidelity of imaging.

P/N

WL

nm

Compatible Scan Lenses

CLS-DC-18 800-1400 CLS-FL-18/CLS-FL-18B
CLS-DC-36 800-1400 CLS-FL-36/CLS-FL-36B
CLS-DC-40 400-700 CLS-FL-40
CLS-DC-54 800-1400 CLS-FL-54/CLS-FL-54B
CLS-DC-54C 750-950 CLS-FL-54C
CLS-DC-54D 950-1150 CLS-FL-54D
CLS-DC-54E 1200-1400 CLS-FL-54E
CLS-DC-110 800-1400 CLS-FL-110A/CLS-FL-110B
