CLS2-SL-F70
Wavelength 370-1100 nm
Effective Focal Length 70.5 mm
Working Distance 54 mm
Field of View 19 x 19 mm2
Mounting Threads SM2
Entrance Pupil Position 58 ± 6 mm From Mounting Shoulder
Entrance Pupil Diameter 5 mm (MAX)
F# 14
F- Theta Distortion <0.05% (400-750 nm)

Wavelength 370-1100nm  EFL = 70mm   EPD = 5mm



CLS2-SL-F70 is for widely working wavelength 370-1100nm, and the scanning lenses are ideal for laser scanning imaging systems and applications such as Optical Coherence Tomography (OCT), confocal laser scanning microscopy, and multiphoton imaging. They generate flat image planes with minimal distortion of spot size across the entire field of view, making them suitable for applications requiring precise imaging. With small f-theta distortion and geometric correction of scanned images, these lenses ensure high-quality imaging with minimal post-processing. They are optimized for a wide wavelength range, including visible and near-infrared, and provide consistent resolution across the scanned area.

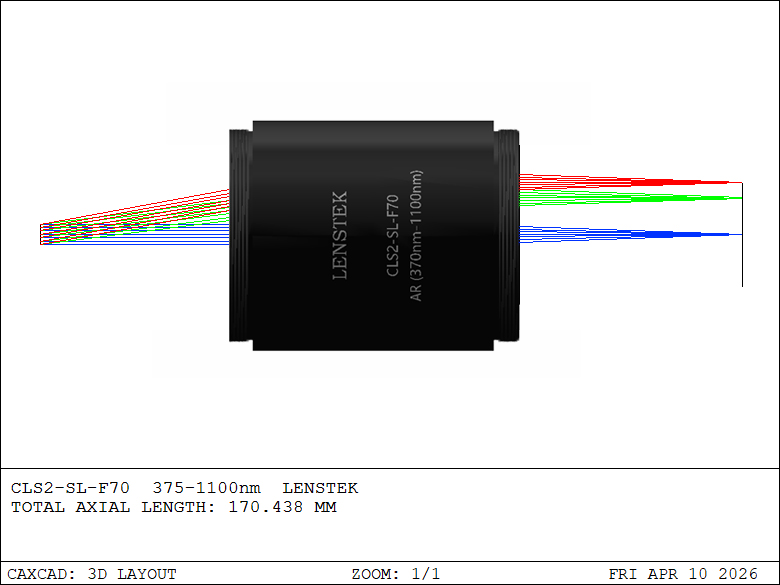

LAYOUTZEMAX File3D STEP

CLS2-SL-F70-LAYOUT.pdf

CLS2-SL-F70.ZAR

Write a review

Please login or register to review

CLS2-SL-F70

  • Brand: LENSTEK
  • Product Code: CLS2-SL-F70
  • Reward Points: 280
  • Availability: In Stock
  • Â¥28,000.00

  • Ex Tax: Â¥28,000.00
